Buc71 (Ark 8)
Master bucket with support for 7.1

Features:
8 Group master output module
8 Aux master A output module
8 Aux master B output module
and IP701 main master module

Buc71 has support for 7.1 surround, with all necessary connections and input and output amplifiers for surround functionality.

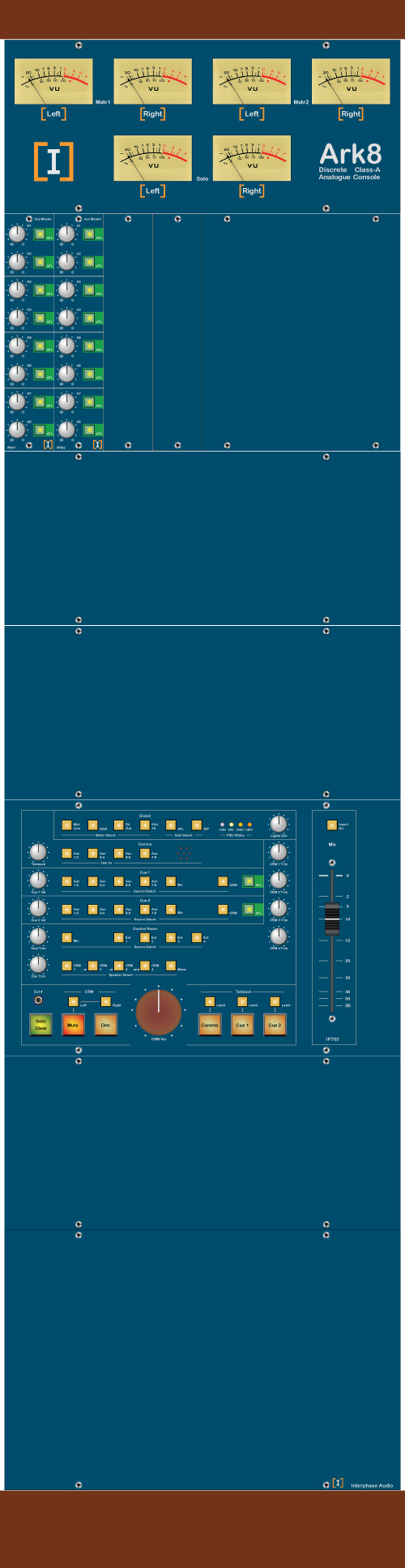

Buc72 (Ark 8)
Master bucket with blank middle section

Features:
8 Group master output module
8 Aux master A output module
8 Aux master B output module
and IP702 main master module

Buc73 (Ark FL)
Master bucket with blank middle section

Features:
8 Group master output module
8 Aux master A output module
and IP703 main master module

Buc78 (Ark FL)
Master bucket with 16 slots for 500 series modules

Features:
8 Group master output module
8 Aux master A output module
and IP703 main master module

Multiple options are available for the master buckets.
* slots for Octa and / or 500 modules
* FX returns module
* Stereo channels
* Additional metering
* Headphone amps

The Options tab lists all of them

Buc11
Mic / Line / DAW input channel bucket with multi-EQ

Features IP111, IP211 and IP311 modules

Buc12
Line / DAW input bucket with multi-EQ

Features IP112, IP211 and IP311

Difference between Buc11 and Buc12 ?
Buc12 has the IP112 input modules, which feature Line and DAW input (no Mic Pre).

Buc15
Group / Line / DAW input bucket with multi-EQ

Features IP115, IP211 and IP311

Difference between Buc11 and Buc15 ?
Buc15 has the IP115 input modules, which feature Group, Line and DAW inputs.
The IP115 can turn the channel into group master.

Buc10
Empty input channel bucket ready for 8 inline input channels with EQ

VU meters, motherboards and cabling installed.
Blank panels on upper, middle and lower inputs included.

Input channel modules can be customer installed any time in the future.

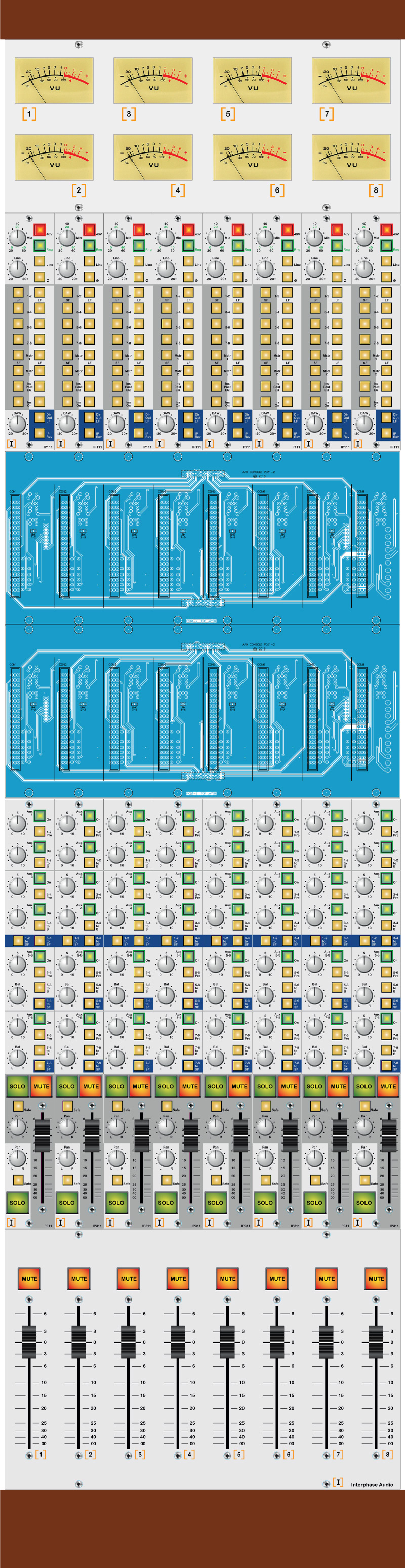

Buc51 (Ark 8)
Mic / Line / DAW input channel bucket with 16 slots for 500 modules

Features IP111, IP508 and IP311
The 2 rows of 8 slots for 500-series modules have their own power supply.

Buc52 (Ark 8)
Line / DAW input channel bucket with 16 slots for 500 modules

Features IP112, IP508 and IP311

The 2 rows of 8 slots for 500-series modules have their own power supply.

Buc53 (Ark FL)
Line / DAW input channel bucket with 16 slots for 500 modules

Features IP113, IP508 and IP311

The 2 rows of 8 slots for 500-series modules have their own power supply.

Buc56 (Ark 8)
Mic / Line / DAW input channel bucket with 16 slots for Octa modules

Features IP111, IPocta and IP311
The 2 rows of 8 slots for Octa and 500-series modules have their own power supply, regulators and filtering.

Buc50 (Ark 8 or Ark FL)
Empty input channel bucket ready for 8 inline input channels with 16 slots for 500 modules

VU meters, motherboards, cabling and 500 slots installed.
Includes power supply.
IP111, IP112, IP113 or IP115 and IP311 modules can be customer installed any time in the future.

Slots for 500 modules are ready for use

Buc90
19” bucket with rails for patchbay and/or rackmount units.
Up to 20U of rackgear can be installed.

Buc91
19” bucket with workspace and rails for patchbay / outboard.
Up to 8U of rackgear can be installed.
Flat workspace holds the things you need at hand.

Buc92
Double-wide bucket with horizontal space for mouse / keyboard, FX units and controllers.
Wide enough to hold a 24” computer monitor

IP95

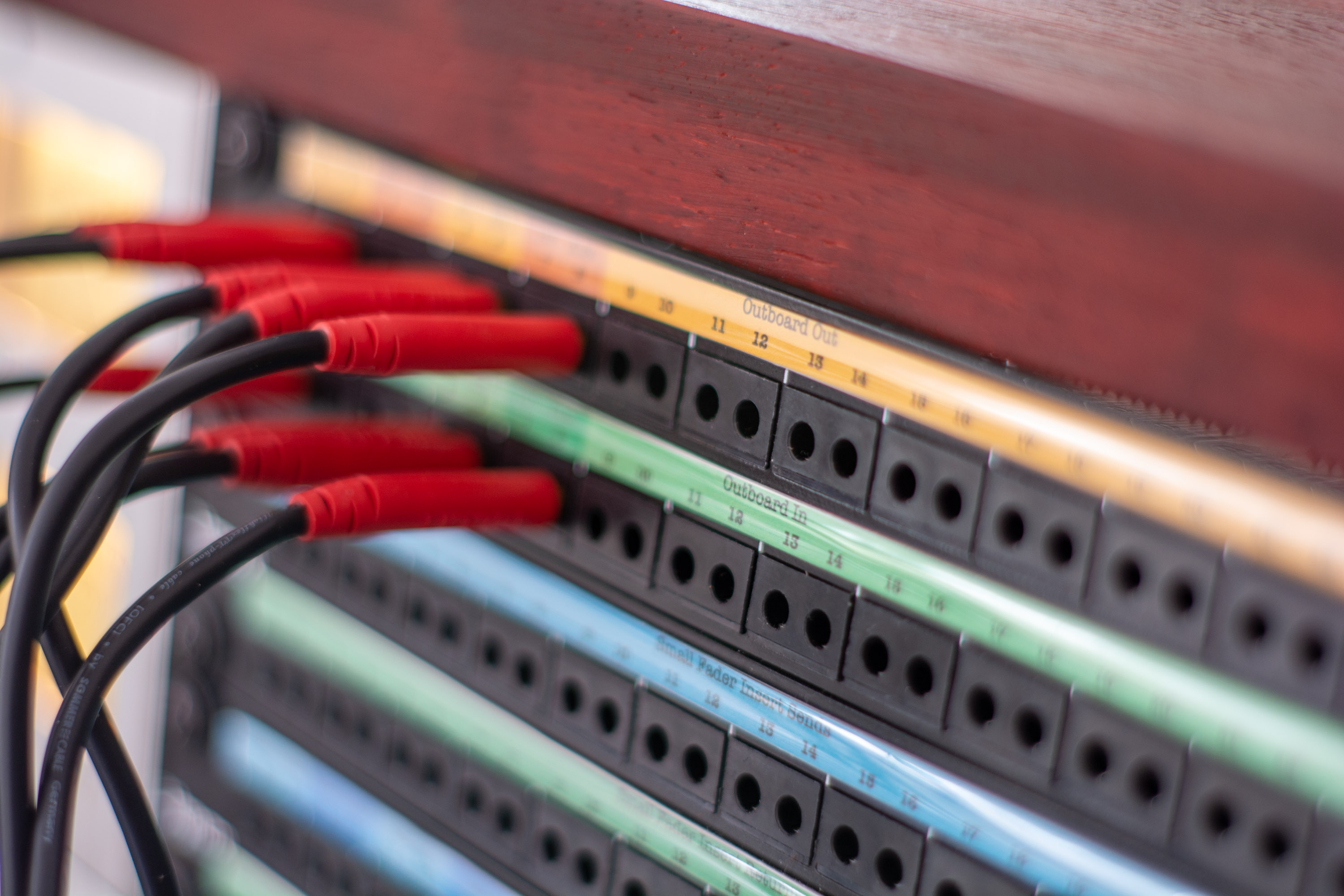

1U 19” 96-point Bantam patchbay - Includes internal wiring to console.
To be installed in Buc90 or Buc91
Per piece, 4 to 7 are needed, depending on configuration

IP508
8 slots for 500 modules for master bucket.
Up to 2 of these can be installed at the middle master section of Buc71, Buc72 or Buc73
Only 500 modules can be installed in the IP508

IPocta
8 Octa slots for master bucket.
Up to 2 of these can be installed at the middle master section of Buc71, Buc72 or Buc73
Octa modules, 51x modules and 500 modules can be installed in Octa slots

Headphone Amp
State-of-the-art headphone amplifier

IP516
8 stereo returns for Master section (Buc71, Buc72 or Buc78)
Can be positioned above or below main master module. Up to three of these can be installed in the master bucket for a total of 24 additional stereo inputs (48 summing inputs)

IP616
Meter section with 16 reference bargraph meters, installed in the upper part of the master bucket.
Meters read:
* Aux outputs
* Group outputs and External inputs
* Inputs and outputs of the IP916 stereo channel module (if installed)

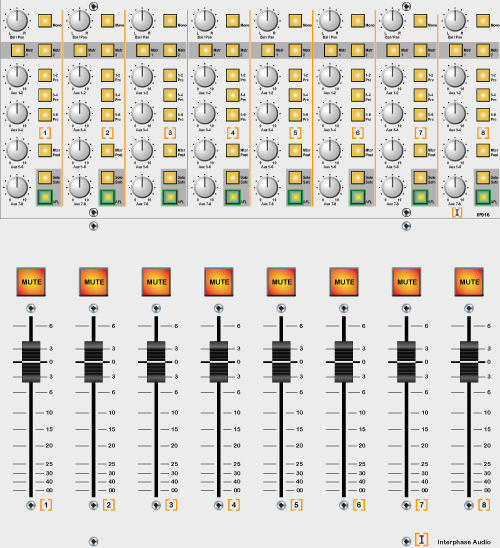

IP916 Channel
Stereo Input Channel Module with 8 aux sends.
Can be installed in the master bucket below the main master section (IP70x)

IP916 Fader
Dual / Stereo faders for IP916 Channel module.
Installed in the master bucket at the fader position of the console (on the same horizontal line as the input channel faders)
